Vacuum Belt Filter Troubleshooting Tips

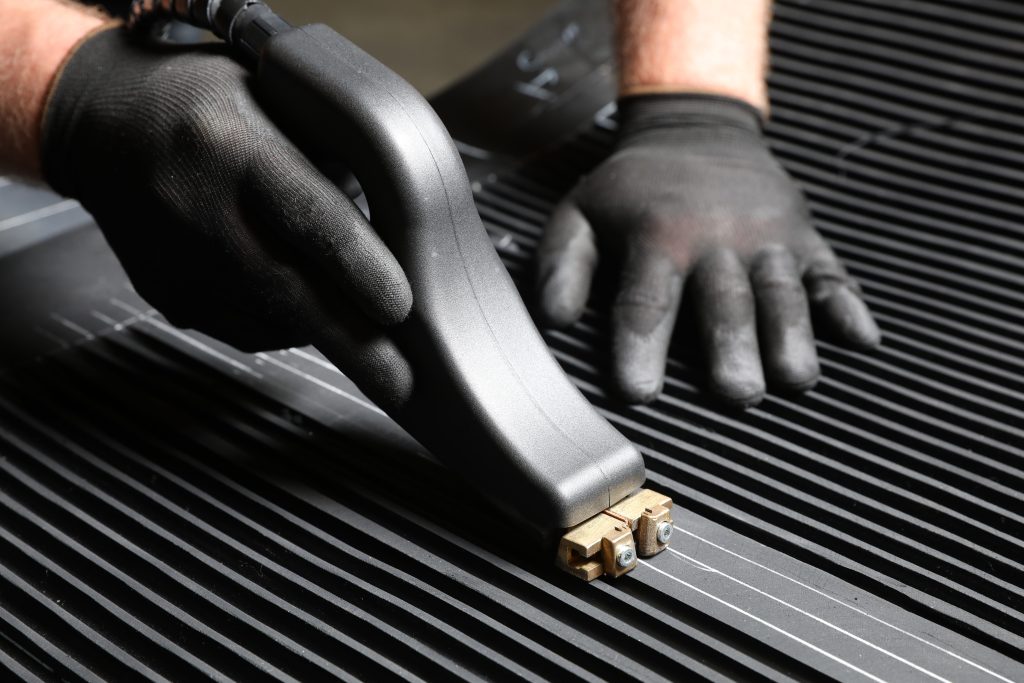

Tip #1 – Rubber Drainage Belt Curbing is Stretched-out and Cracking

If your rubber drainage belt curbing is stretched out, this allows the slurry to slide off the sides of the belt. Our corrugated curb expands around pulleys, preventing wear damage. We can hot vulcanize onsite to maximize its reliability.

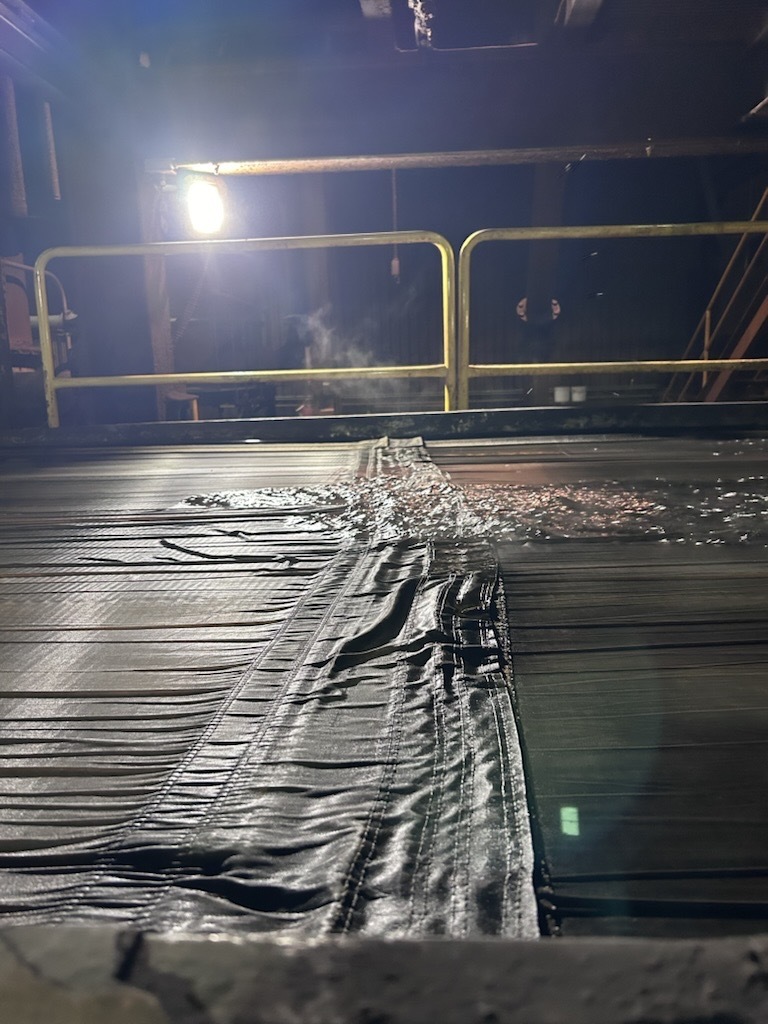

Tip #2 – Cloth Belt is Blinding in Strips

If your shower bars are clogged, your cloth belt can blind prematurely where it is not being washed. Micronics offers self-cleaning shower bars, which will extend the life of your cloth belt and reduce downtime.

Tip #3 – You Are Experiencing Vacuum Loss

If you are experiencing vacuum loss, this is often caused by misaligned slide strips. If the vacuum pan was recently opened for cleaning, the slide strips may not be properly aligned with the drainage holes on the rubber belt. Reassemble with a proper seal.

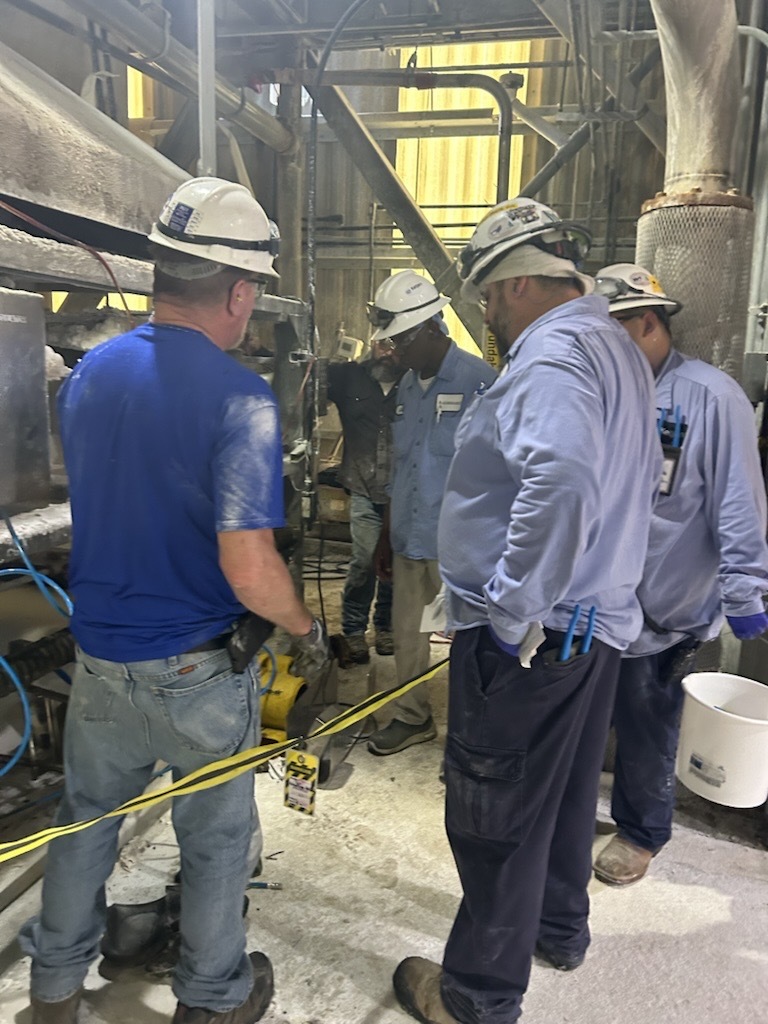

Tip #4 – Drive Pulley Tracks Poorly

If the drive pulley tracks poorly, grooves on the drive pulley may have worn away. These grooves are necessary to pull the rubber drainage belt. Without them, your rubber belt and main drive will wear prematurely. Fortunately, Micronics has the expertise to replace your drive pulley or recover your worn pulley for a fraction of the cost. Reach out and ask us about this cost-effective solution.

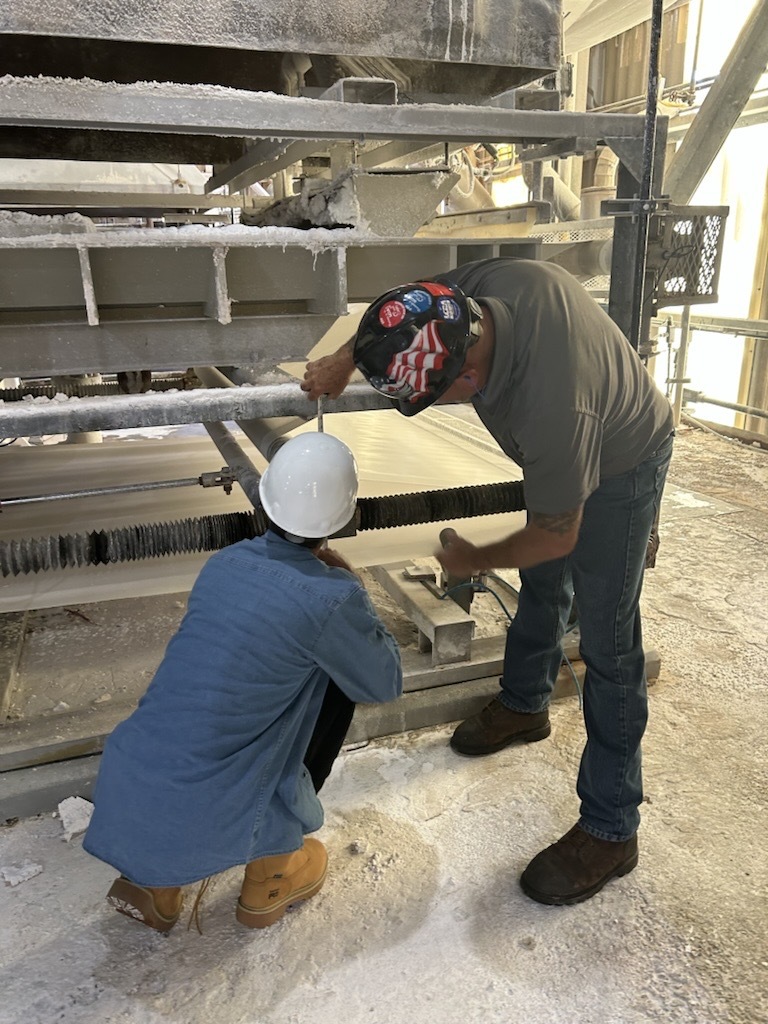

Tip #5 – The Cake is Forming Non-uniformly. It Is Thicker On One Side of the Unit.

If you are in a new facility, the foundations could have settled within the first few years, causing a bit of a slope. Even a slight change in slope can make a dramatic difference in cake thickness across the width of the belt. Proper alignment will also help your vacuum pan stay sealed.

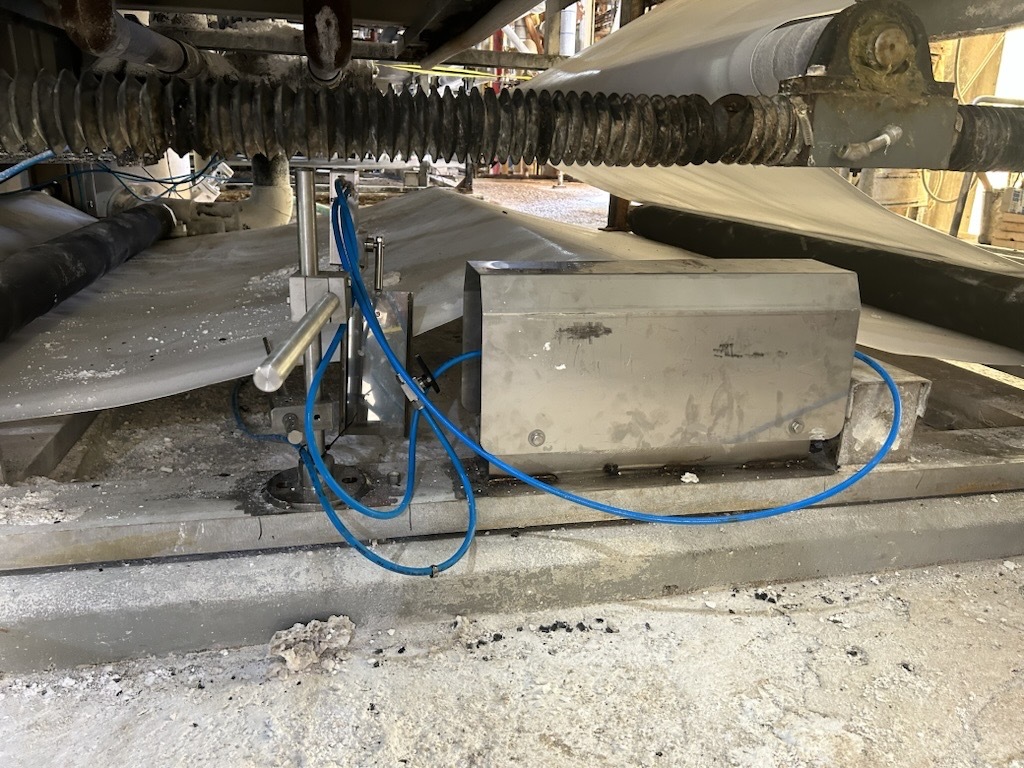

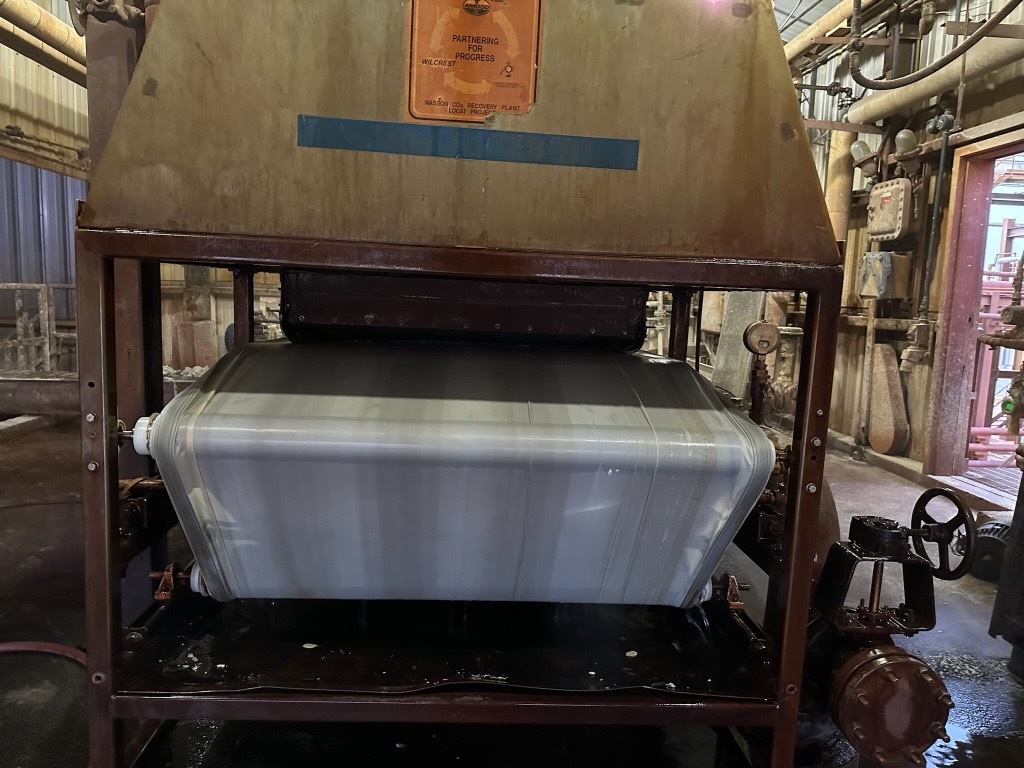

Tip #6 – You Are Experiencing Wrinkles or Bunching in the Cloth Belt

If your current Belt Tracking System is a spring/ rope configuration or a steel two-wheel edge tracker, Micronics’ UHMW polyethylene Edge Trackers are an easy way to smooth out your belt. We can even reconfigure your cloth belt so that it has pip edging for the tracker to grip.

Tip #7 – Endless Rubber Drainage Belts Require Weeks of Downtime to Install

Instead of tearing your filter apart and struggling to install an endless belt, let the Micronics team come in and hot vulcanize a new rubber drainage belt right onto your equipment in just three days. You’ll be up and running in no time! Give us a call about a new rubber drainage belt installation.

Vacuum Belt Wear Parts

Micronics can supply filter media and replacement parts for any manufacturer and model of Horizontal Belt Vacuum Filter. Here is a list of spare parts to keep on the stock shelf. Reach out to Micronics for all your filter media and parts needs:

Vacuum Belt Filter Services Available for Every OEM’s Horizontal Belt Vacuum Filter (HBVF)

Micronics has a Salt Lake City, UT facility dedicated to fabricating Rubber Drainage Belts. We have another facility in Winthrop, Maine dedicated to fabricating and refurbishing pulleys and rollers. It is down the street from our facility that fabricates complete Horizontal Belt Vacuum Filters and other Vacuum Filters, including Rotary Drum Vacuum Filters and Disc Vacuum Filters. We are a true powerhouse in Vacuum Filtration Solutions!

A Micronics technical salesperson who covers your area is ready to come to your plant and help fix your Vacuum Filter! Take advantage of Micronics’ Total Engineered Filtration Solutions. From vacuum filter media to complete vacuum filtration systems to Installation, field services, In-house laboratory services, and engineered parts, it’s all right here at Micronics.
